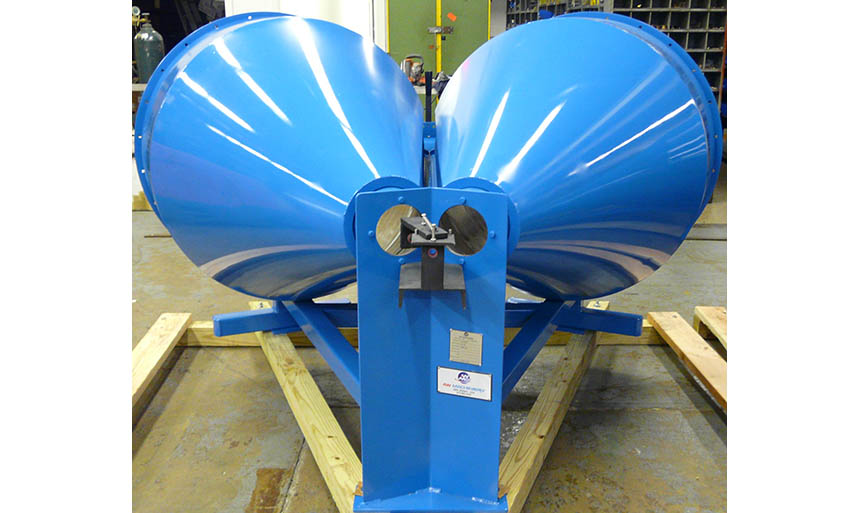

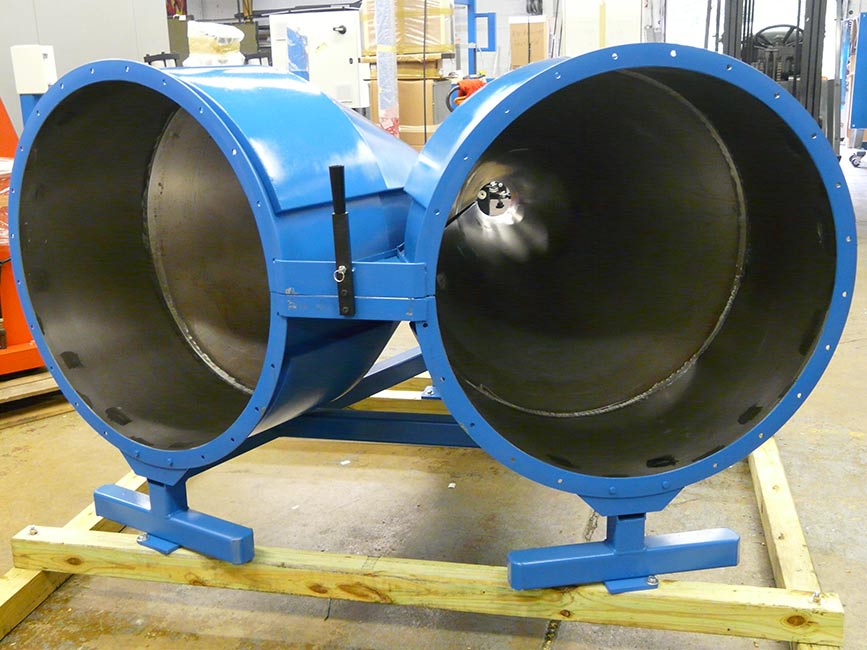

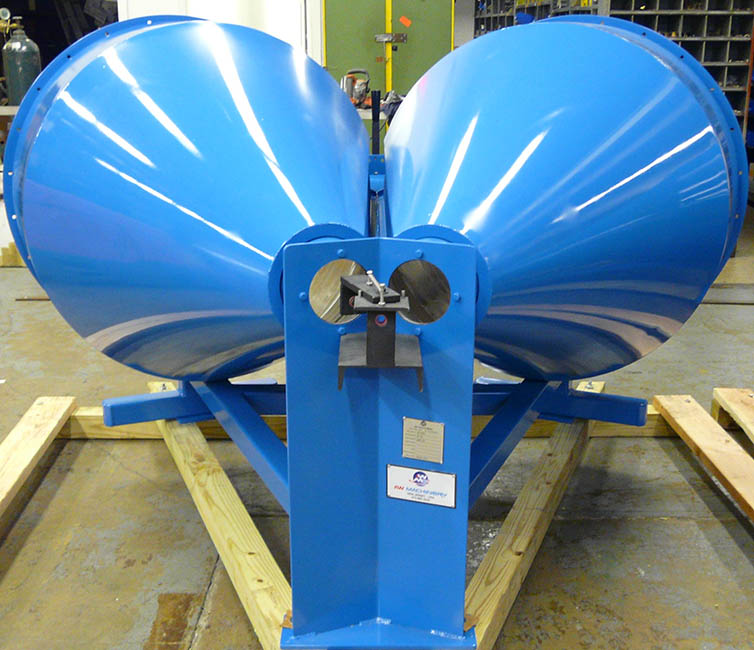

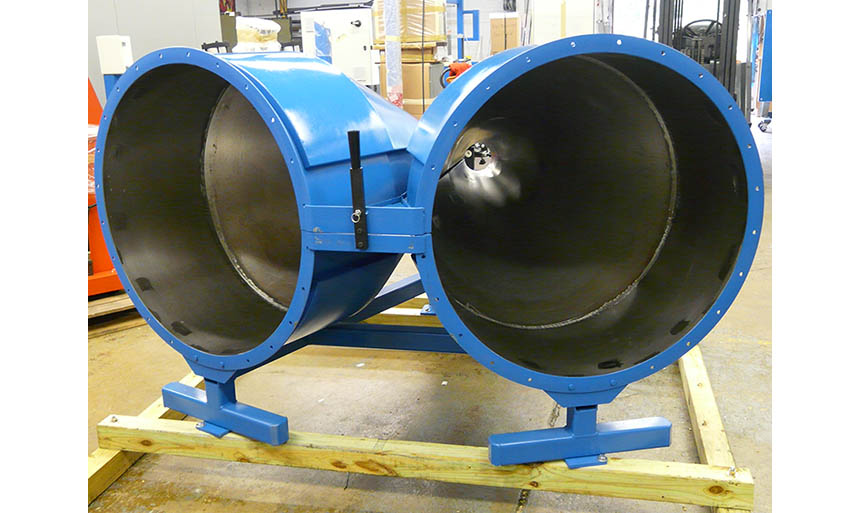

Flyer Cones are designed for continuous operation at speeds up to 3000 fpm (914 mpm) and are available in either dual or single reel configurations. Each cone is conical with a cylindrical end piece and is constructed of a rolled sheet of heavy gauge steel. Sheet metal shell over semi rigid foam on the outside of the cones reduces excessive noise. The cones are mounted on a solid heavy-duty tubular steel welded frame base for easy placement.
"Your Premier Source for Wire and Cable Machinery and Systems"
"Your Premier Source for Wire and Cable Machinery and Systems"
Products
Dual Cones
FEATURES
- Heavy gauge rolled cone provides durability
- Semi-rigid foam with external sheet metal shell reduces excessive noise

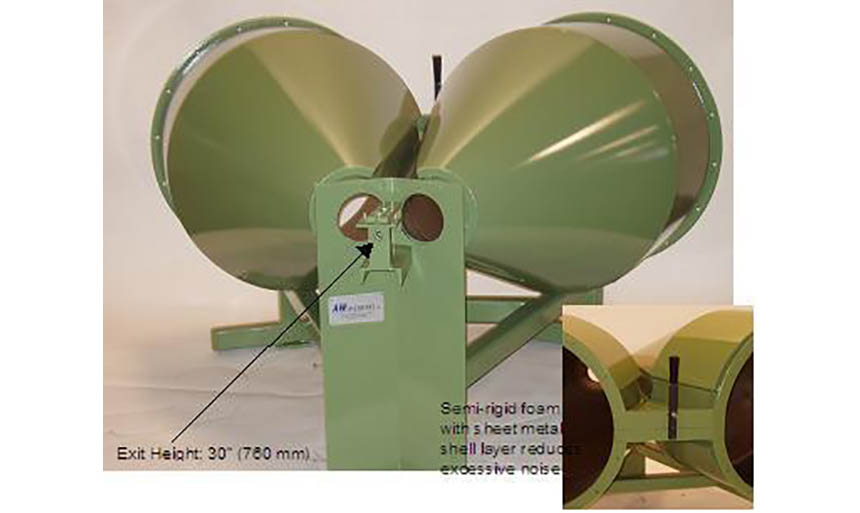

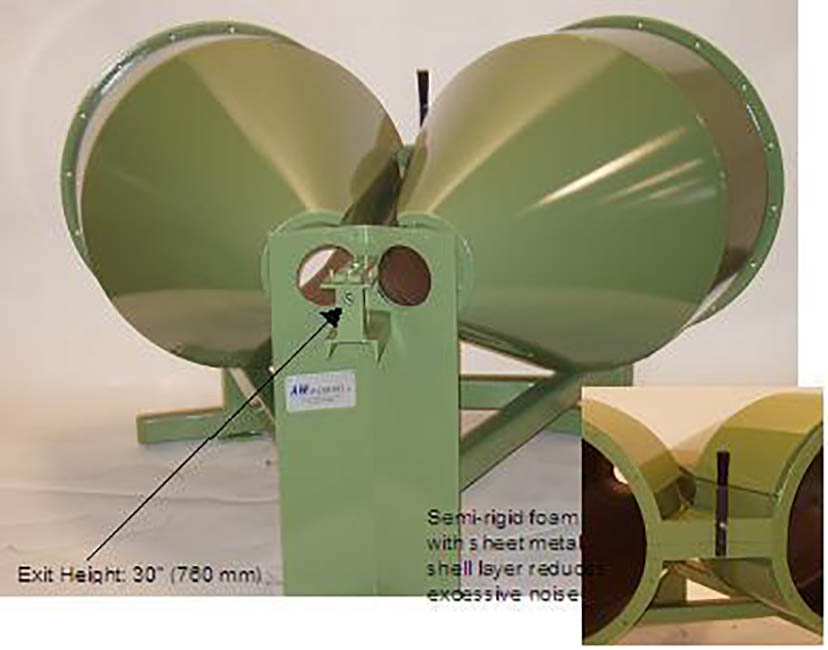

- Exit height of 30” (760 mm)
- Strong tubular steel base withstands constant vibration
- Ceramic wire guide at the exit End keeps the conductor centered
- Manual shift handle to offset the transfer groove allows to run left & right hand wire lays and eliminates damage of the wire due to payoff lashing.
- Pneumatic exit transfer guide available
